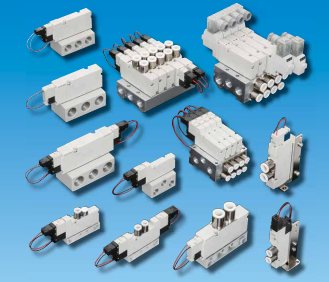

4F629-00-L-DC24V/Z Solenoid Valve CKD
Features of CKD solenoid valve:
1. External leakage is blocked, internal leakage is easy to control, and it is safe to use. Internal and external leakage are elements that endanger safety. Other automatic control valves usually extend the valve rod, controlled by electric, pneumatic, or hydraulic actuators to rotate or move the valve core. This requires solving the long-term action problem of external leakage of the valve rod dynamic seal; only the solenoid valve uses electromagnetic force to act on the iron core sealed inside the electric regulating valve's magnetic shield tube, there is no dynamic seal, so external leakage is easy to block.
2. Simple system, easy to connect to computers, and low price. The solenoid valve itself has a simple structure and a low price, which is easier to install and maintain than other types of actuators such as regulating valves. More significantly, the组成的自控系统 is much simpler and the price is much lower. Since the solenoid valve is controlled by a switching signal, it is very convenient to connect to industrial control computers. In today's era of computer普及 and significant price drops, the advantages of solenoid valves are even more apparent.
3. Fast action, low power, and compact size. The response time of the solenoid valve can be as short as a few milliseconds, and even pilot-operated solenoid valves can be controlled within tens of milliseconds. Because it forms a loop on its own, it is more sensitive than other automatic control valves. A well-designed solenoid valve coil power consumption is very low, belonging to energy-saving products; it can also be set to automatically maintain the valve position after triggering, and it does not consume power at all in normal times. The solenoid valve has a small size, saving space and being light and elegant.
4. Limited adjustment accuracy, limited applicable media. Solenoid valves usually only have two states, on and off, and the valve core can only be in two extreme positions, not continuously adjustable, (many new ideas are being tried to break through, but they are still in the experimental and trial use stages) so the adjustment accuracy is still limited. Solenoid valves have higher requirements for the cleanliness of the medium, and media with particulate matter cannot be applied, such as impurities that must be filtered out first. In addition, viscous media cannot be applied, and the specific product applicable viscosity range of the medium is relatively narrow.
5. A variety of models, wide application. Although solenoid valves have inherent shortcomings, their advantages are still very prominent, so they are designed into a variety of products to meet various different needs, and their applications are extremely wide. The progress of solenoid valve technology is also centered on how to overcome inherent shortcomings and how to better utilize inherent advantages.
Editor's note:
CKD product models are as follows:
4F629-00-L-DC24V/Z
CMK2-00-20-75/Z
W1000-8-W-BW/Z
C4000-15-W/Z
SLW-8A
SC3W-10-8
4F320-10-M2LN-AC220V
SRL3-G-LB-63B-825-M0H-D-AL1R
4GE219-00-E22H-3
Two-position five-way solenoid valve 4F629-00-L-DC24V/Z belongs to the Electric Actuators series under CKD company, model number 4F629-00-L-DC24V/Z. To purchase or inquire about Two-position five-way solenoid valve 4F629-00-L-DC24V/Z, you can directly contact 158 0047 0089 (Mr. He).
1. Cylinders: Used to convert the energy of compressed air into mechanical energy to produce linear motion.
2. Pneumatic valves: Used to control the direction, speed, and pressure of airflow, regulating the operation of pneumatic systems.
3. Pneumatic motors: Devices that convert compressed air into rotary motion.
4. Air tubes and connectors: Used to connect various components in pneumatic systems and transmit air.
Yes, CKD pneumatic components require regular maintenance to ensure normal operation and extend service life. Key maintenance points include:
- Regularly check and replace seals and gaskets to prevent air leakage.
- Inspect and clean filters to ensure clean air quality.
- Lubricate moving parts to reduce wear and improve efficiency.
- Check air tubes and connectors to ensure secure and undamaged connections.
When selecting the appropriate CKD pneumatic components, consider the following factors:
Application requirements: Understand the specific working environment and tasks, such as load, speed, and stroke.
Air source conditions: Ensure that the pressure and flow of the air source meet the component’s requirements.
Installation space: Confirm available space and choose components of suitable size.
Environmental factors: Consider the temperature, humidity, and potential corrosiveness of the working environment to select suitable materials and designs.
Common pneumatic system faults include:
Air leakage: Causes efficiency decline; check seals, connections, and tubes, find leak points, and repair or replace.
Stuck cylinder piston: Possibly caused by dirt or insufficient lubrication; clean the piston and add lubricant.
Valve failure: Check electrical control signals, ensure smooth airflow, and verify if the valve itself is damaged.
Insufficient pressure: Inspect air source pressure, filters, and piping to ensure no blockage or leakage.
